Description
Product Overview

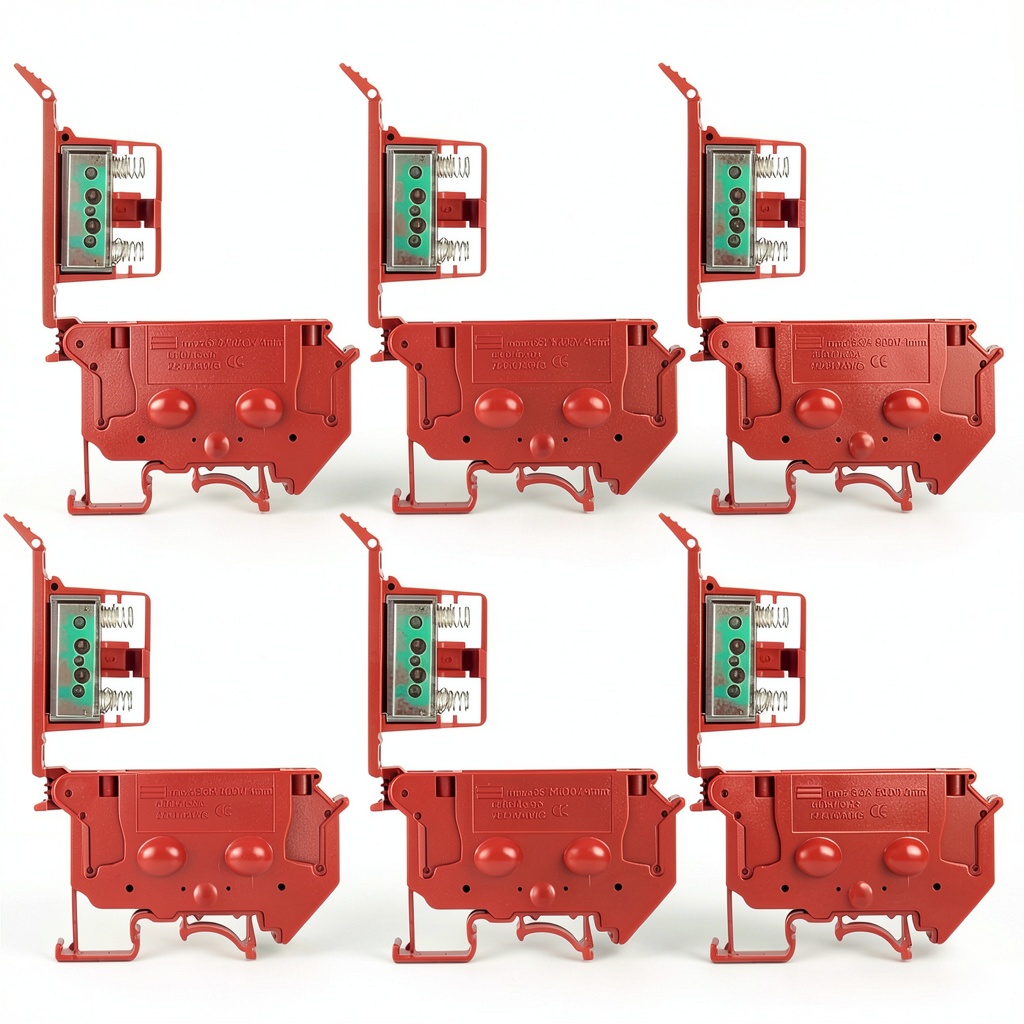

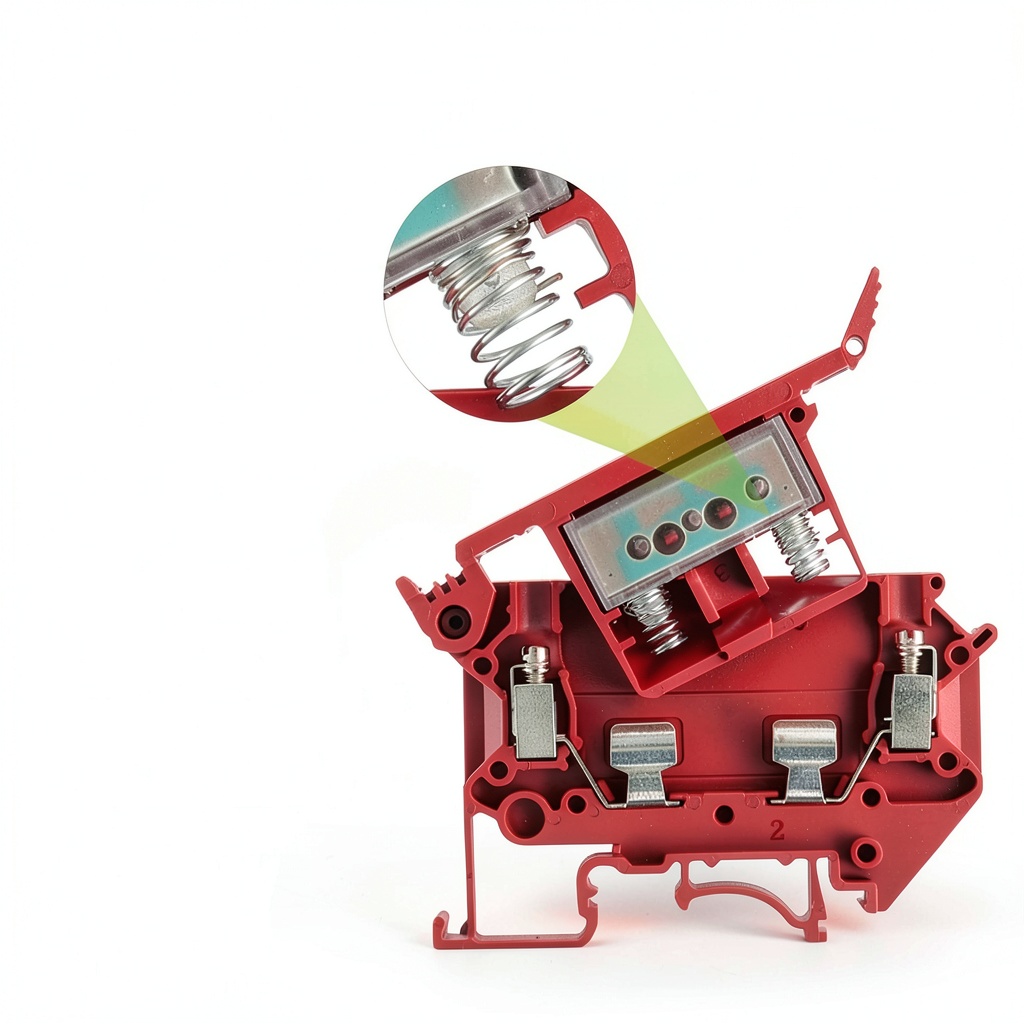

The UK5-HESI fuse holder terminal block is engineered to meet the demanding requirements of modern electrical installations, offering a blend of robust construction, precise engineering, and user‑friendly features. Constructed from high‑performance PA66 nylon, the housing delivers exceptional flame resistance and mechanical strength, ensuring long‑term durability even in harsh environments. Inside, the terminals are crafted from premium brass and receive a nickel plating that enhances conductivity while protecting against corrosion, providing a reliable path for current flow across a wide temperature range.

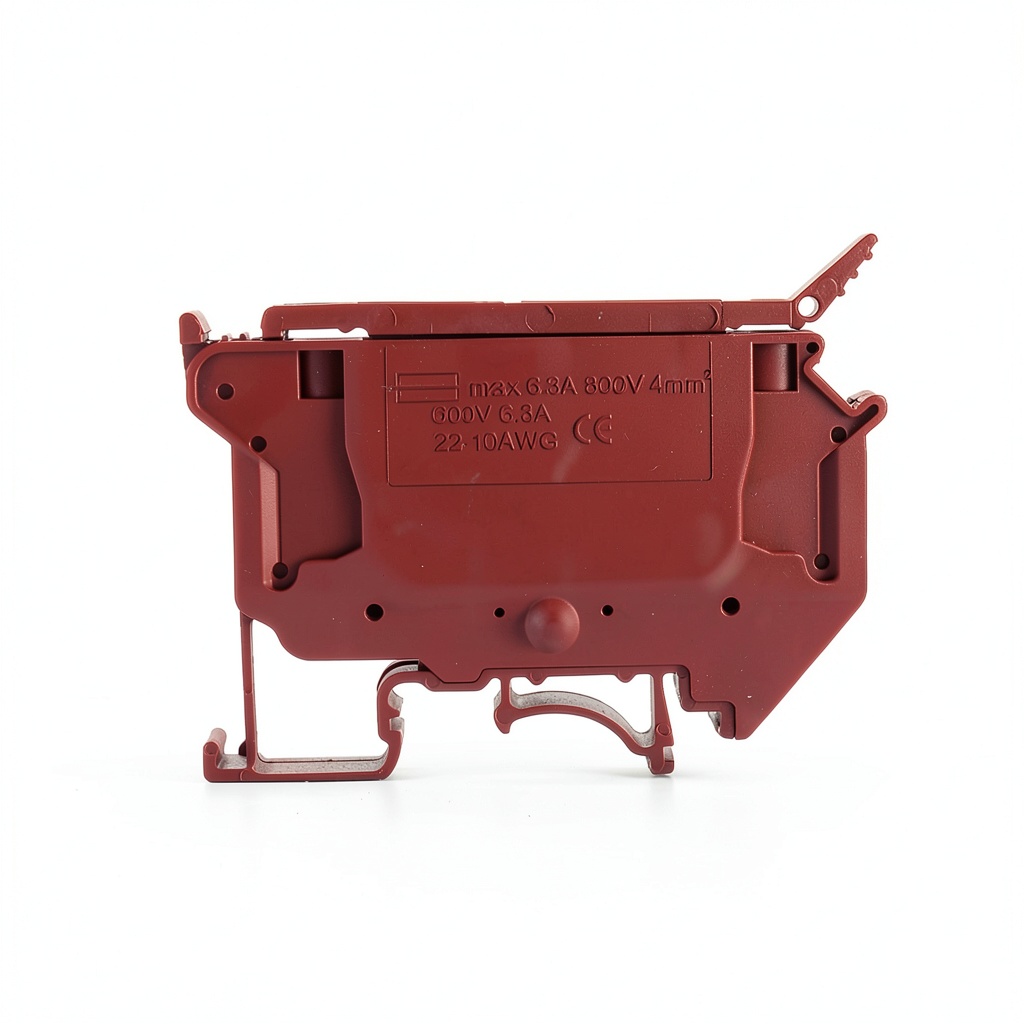

Designed to accommodate a variety of fuse sizes—including 5×20, 5×25, 6×30, and similar dimensions—the UK5-HESI model offers flexibility for both residential and industrial applications. The screw‑type connector allows for secure wire clamping, simplifying installation and maintenance. With a current rating of 6.3 Amps and a voltage rating of up to 800 Volts, the device can safely handle typical loads encountered in control panels, distribution cabinets, and junction boxes.

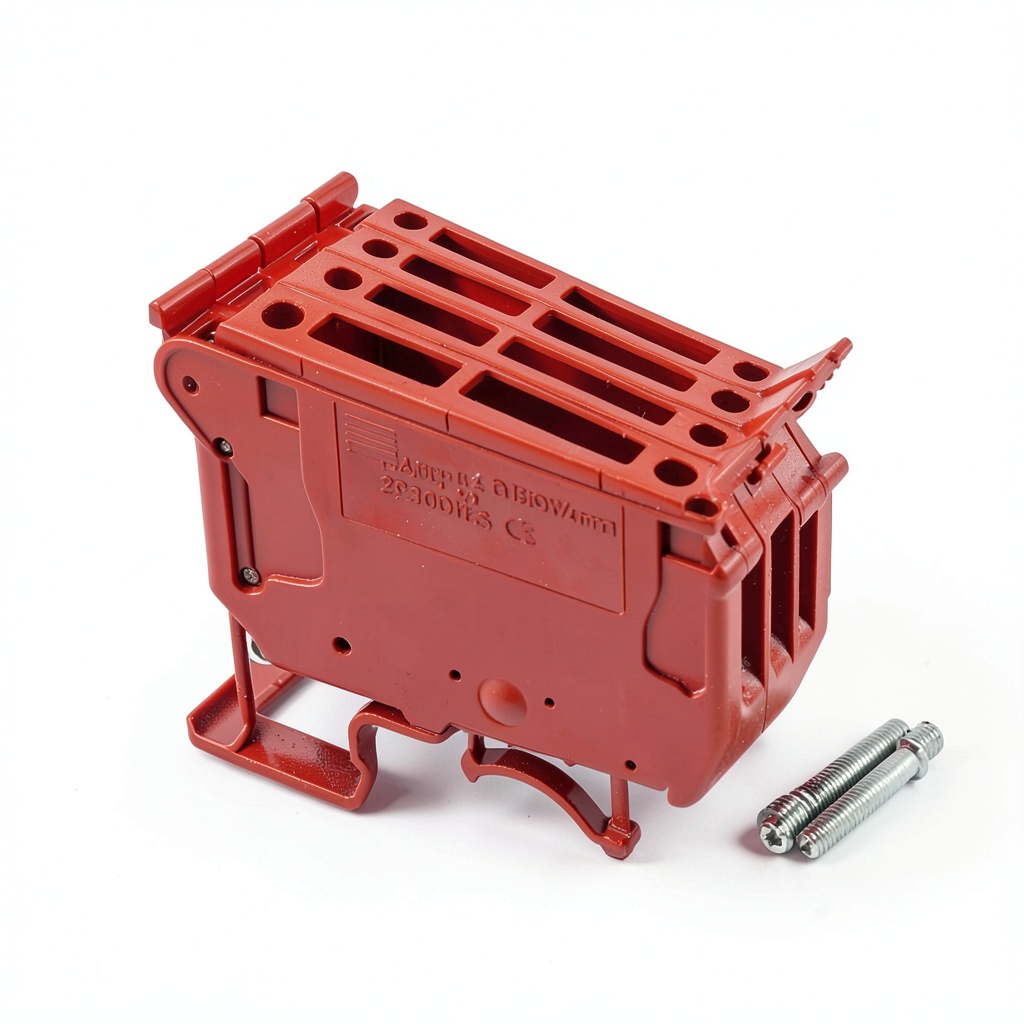

Physical dimensions of 2.85 × 0.32 × 2.22 inches (L × W × H) make the unit compact enough to fit densely packed DIN rail assemblies while still providing ample space for clear wire routing. The universal mounting feet enable straightforward attachment to standard DIN rails, and the red LED indicator offers immediate visual confirmation of fuse status, reducing troubleshooting time and improving overall system reliability.
Manufactured by EPLZON, a reputable brand known for quality electrical components, this fuse holder benefits from rigorous quality control processes and compliance with industry standards. The combination of a flame‑retardant outer shell, nickel‑plated brass contacts, and a user‑centric design positions the UK5-HESI as a trusted solution for electricians, system integrators, and maintenance professionals seeking dependable performance.
Usage
The UK5-HESI fuse holder excels in a wide range of settings, from small residential circuits to large commercial distribution panels. In home automation projects, it provides a secure point for protecting lighting circuits, HVAC units, and smart home devices, ensuring that overloads are safely isolated without damaging downstream equipment. For industrial environments, the holder is ideal for safeguarding motor control centers, PLC cabinets, and sensor arrays, where reliable fuse protection is critical to prevent costly downtime.

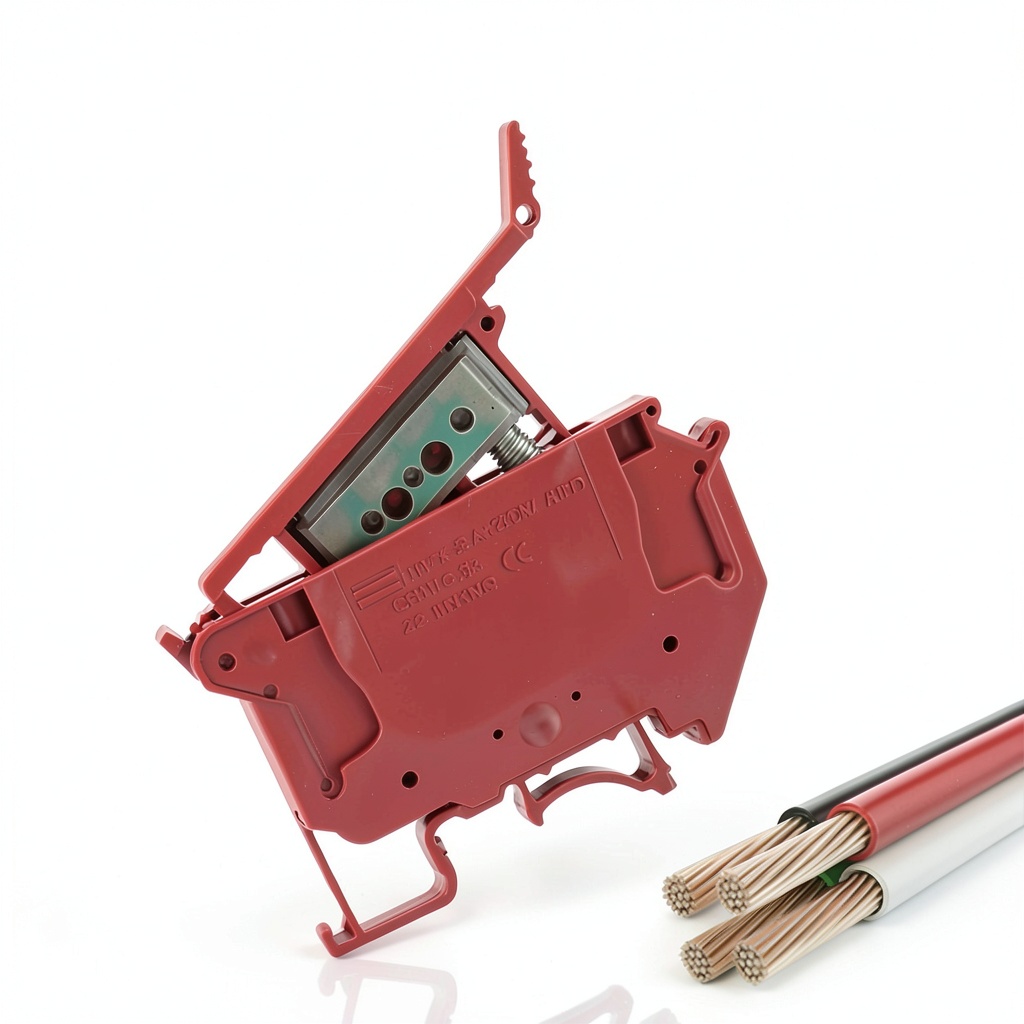

Because of its DIN rail compatibility, the fuse holder can be quickly integrated into existing panel layouts, allowing for rapid upgrades or retrofits. The screw‑clamp terminals accommodate a variety of wire gauges, making it suitable for both fine‑strand control wiring and heavier power conductors. Its compact footprint also helps conserve valuable panel space, enabling designers to maximize component density without sacrificing safety or accessibility.
Why Choose Us
Choosing the UK5-HESI fuse holder means selecting a product that combines rigorous engineering with practical convenience. EPLZON’s commitment to quality is reflected in the use of PA66 nylon, a material renowned for its high impact resistance and flame‑retardant properties, which protects the device and surrounding components during fault conditions. The brass terminals, enhanced with nickel plating, deliver superior electrical performance, reducing voltage drop and ensuring consistent operation over the product’s lifespan.
Beyond material excellence, the design incorporates user‑centric features such as the red LED status indicator, which provides instant visual feedback on fuse integrity, and the universal mounting feet that simplify installation on standard DIN rails. Additionally, EPLZON offers comprehensive technical support and a responsive after‑sales service team, ready to assist with any installation queries, warranty claims, or product updates, reinforcing confidence in long‑term reliability.
Key Features
- Durable PA66 nylon housing with flame‑retardant properties ensures safety and longevity in demanding environments.
- Nickel‑plated brass contacts provide high conductivity and resistance to corrosion for reliable performance.
- Compact DIN rail design with universal mounting feet enables quick, space‑saving installation in tight panel layouts.
- Red LED indicator offers immediate visual confirmation of fuse status, simplifying troubleshooting and maintenance.
- Comprehensive EPLZON technical support and warranty service guarantee peace of mind and assistance throughout the product lifecycle.
FAQ
What fuse sizes are compatible with the UK5-HESI holder?
The holder is designed to accept a range of standard fuse dimensions, including 5×20, 5×25, 6×30, and similar sizes. This flexibility allows it to be used in various circuits where different current ratings are required, making it a versatile choice for both low‑current control applications and higher‑current protection needs.
Can the UK5-HESI be used in hazardous or high‑temperature environments?
Yes. The PA66 nylon housing is flame‑retardant and maintains its mechanical integrity at elevated temperatures, while the nickel‑plated brass contacts are rated for up to 800 Volts. However, for environments with extreme temperatures or explosive atmospheres, it is recommended to verify compliance with specific local safety standards and, if necessary, select a product specifically rated for those conditions.
How does the LED indicator function, and what does it signify?
The built‑in red LED is wired in parallel with the fuse element. When the fuse is intact and current flows normally, the LED illuminates, indicating that the circuit is protected and operational. If the fuse blows, the LED turns off, providing an immediate visual cue that the fuse needs to be inspected or replaced, thereby reducing downtime.
Is the screw‑clamp mechanism suitable for different wire gauges?
Absolutely. The screw‑clamp terminals are engineered to securely grip a range of wire sizes, from fine‑strand control wires to heavier power conductors. By tightening the screw, users can achieve a firm, reliable connection without the need for additional crimping tools, streamlining the installation process and ensuring consistent electrical contact.
What warranty and support does EPLZON provide for this product?
EPLZON offers a standard one‑year limited warranty covering manufacturing defects and material failures. In addition, the company’s technical support team is available to assist with installation guidance, troubleshooting, and any questions related to product specifications, ensuring that customers receive prompt and knowledgeable assistance throughout the ownership period.
Reviews
There are no reviews yet.
