Description
Product Overview

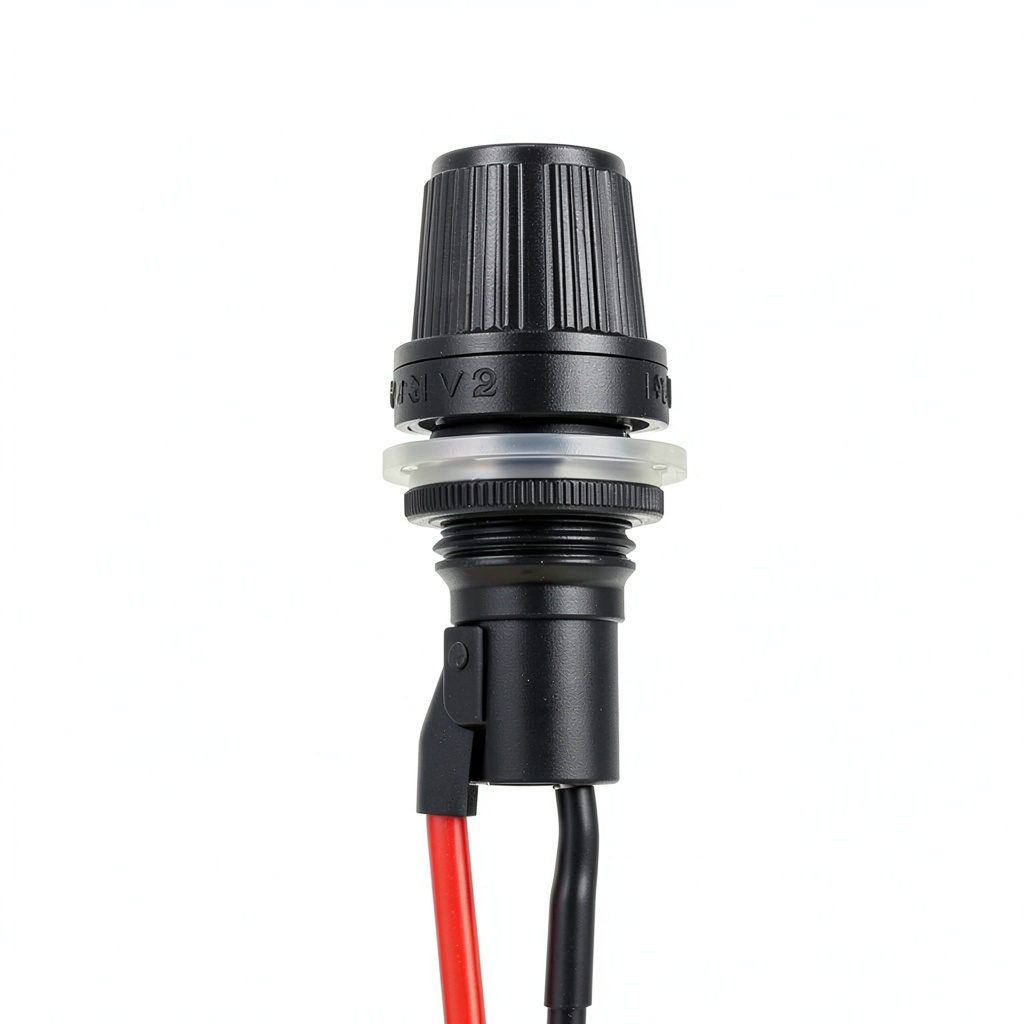

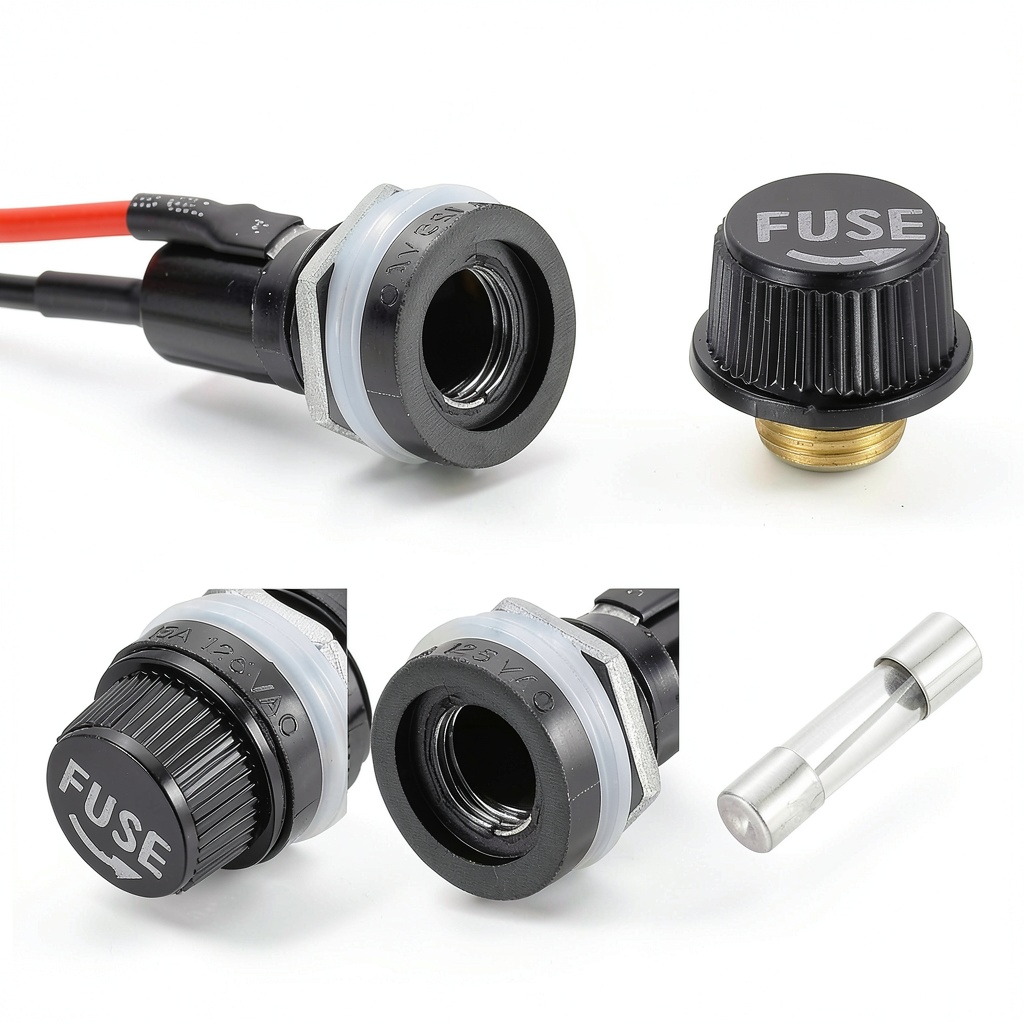

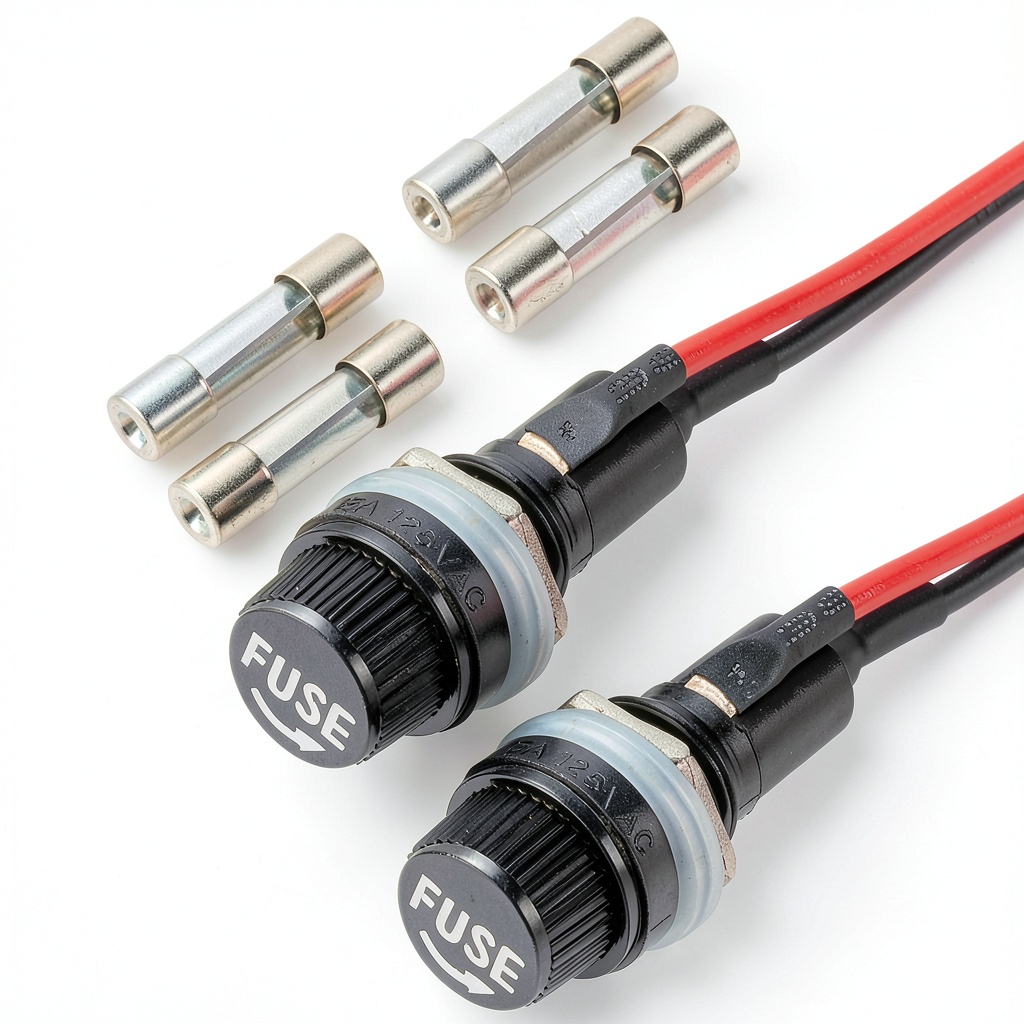

The MECCANIXITY Panel Mount Fuse Holder is engineered to deliver dependable circuit protection for a wide range of electrical applications. Each holder accommodates a standard 5×20 mm glass tube fuse, rated for 15 A and capable of handling both 125 V and 250 V AC line voltages. Constructed from high‑temperature phenolic resin, the housing is fire‑resistant, providing an extra layer of safety in harsh environments. The design incorporates a screw‑cap mechanism that ensures a secure, low‑resistance connection, while the pre‑soldered copper wires simplify the wiring process and reduce the risk of loose connections. This 2‑pack solution offers flexibility for dual‑circuit installations or spare parts, making it an ideal choice for both professional electricians and DIY hobbyists.
Usage

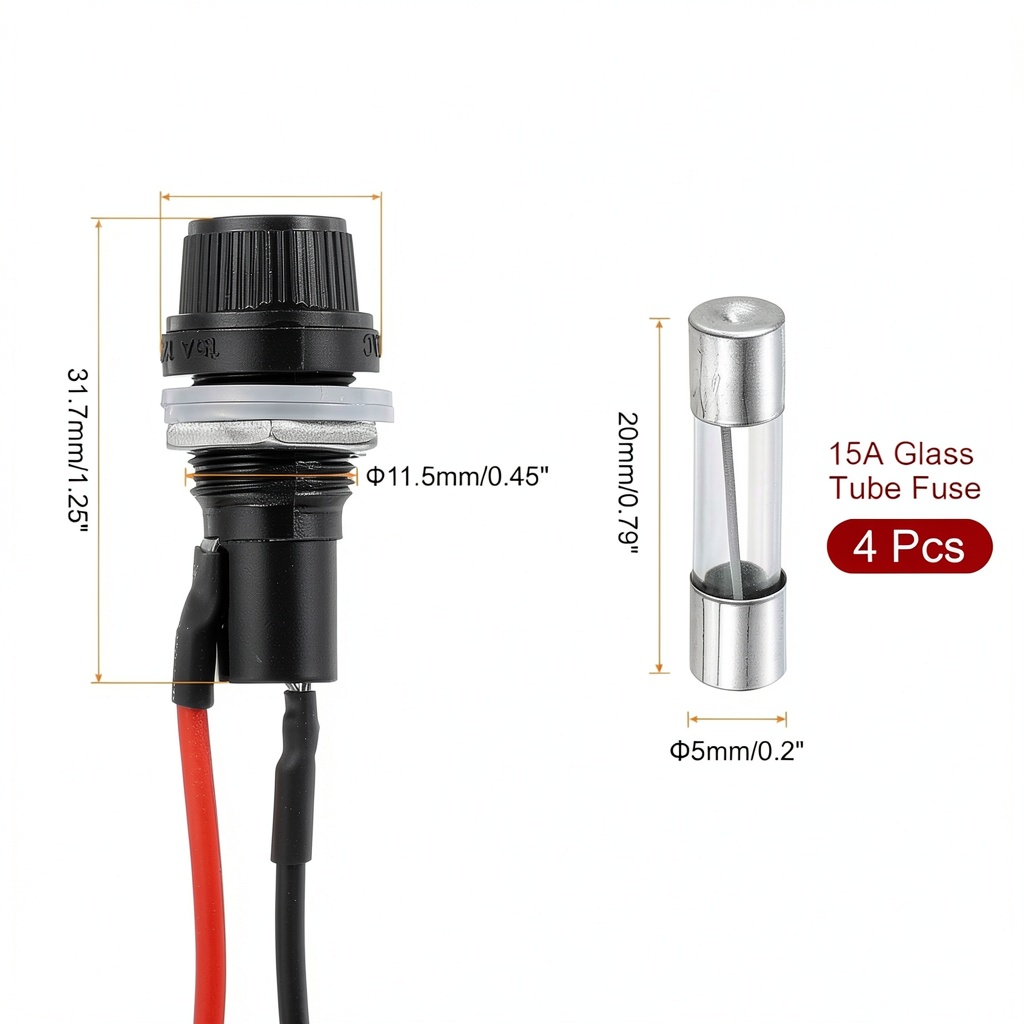

These fuse holders are suited for installation in control panels, distribution boards, motor control centers, and any panelized electrical system where reliable over‑current protection is required. The compact dimensions (5.51 × 3.94 × 0.59 in) allow them to fit into tight panel spaces without compromising accessibility. Whether you are wiring a new industrial automation system, upgrading an existing residential breaker panel, or building a custom test rig, the MECCANIXITY holders provide a straightforward, plug‑and‑play solution. The pre‑soldered wires are compatible with standard copper nuts, enabling quick and secure termination to busbars or terminal blocks. Their robust construction ensures long‑term durability even in high‑temperature or vibration‑prone settings.
Why Choose Us
Choosing MECCANIXITY means selecting a product backed by rigorous quality control and a commitment to safety. The phenolic resin housing meets stringent fire‑resistance standards, reducing the likelihood of catastrophic failure during overload events. Each holder undergoes thorough testing for electrical continuity, mechanical strength, and thermal performance, guaranteeing consistent performance across the entire batch. Our pre‑soldered wires are manufactured to exacting specifications, ensuring optimal conductivity and minimizing installation time. Additionally, MECCANIXITY offers responsive customer support and a clear warranty policy, providing peace of mind for both commercial and residential users.
Key Features
- Easy installation with pre‑soldered copper wires reduces wiring time and errors.
- Fire‑resistant phenolic resin housing enhances safety in high‑temperature environments.

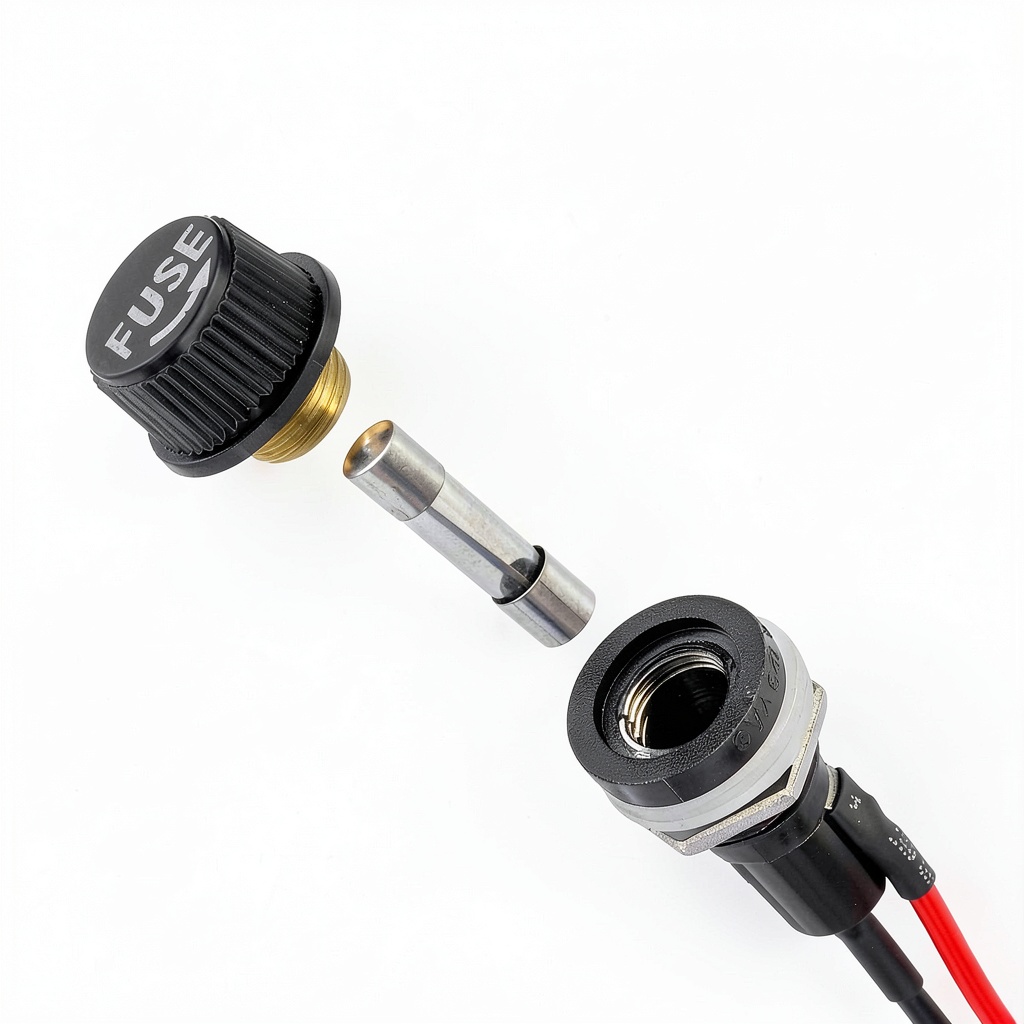

- Screw‑cap design ensures a tight, low‑resistance connection for reliable performance.
- Compact size fits into crowded panel layouts while maintaining accessibility.
- MECCANIXITY customer support and warranty provide confidence and after‑sales assistance.
FAQ
What size fuses are compatible with this holder?
The holder is designed for standard 5×20 mm glass tube fuses, which are widely used in both residential and industrial applications.
Can I use this holder for DC circuits?
While the holder is rated for AC voltages of 125 V and 250 V, it can be used with DC circuits that fall within the same voltage and current specifications, provided the fuse itself is rated for DC use.
Is the pre‑soldered wire compatible with all terminal types?
The pre‑soldered copper wire terminates with standard copper nuts, making it compatible with most terminal blocks, busbars, and screw terminals found in typical panels.
How does the fire‑resistant housing improve safety?
The phenolic resin material resists ignition and limits flame spread, helping to contain any potential fire caused by an overload or short circuit, thereby protecting surrounding components.
What warranty does MECCANIXITY offer?
MECCANIXITY provides a one‑year limited warranty covering manufacturing defects, backed by responsive technical support to assist with any installation or performance questions.
Installation instructions are straightforward: first, ensure power is disconnected. Mount the holder onto the panel using the provided mounting holes, secure it with screws, insert the appropriate fuse, and connect the pre‑soldered wires to the circuit using the copper nuts. After tightening all connections, restore power and verify proper operation with a multimeter or test lamp. Regular inspection of the fuse holder and its connections is recommended to maintain optimal performance and safety.
In summary, the MECCANIXITY 2‑Pack Panel Mount Fuse Holder delivers a blend of convenience, durability, and safety that meets the demands of modern electrical installations. Its thoughtful design, combined with high‑quality materials and comprehensive support, makes it a reliable component for protecting valuable equipment and ensuring uninterrupted operation across a variety of applications.
