Product Overview

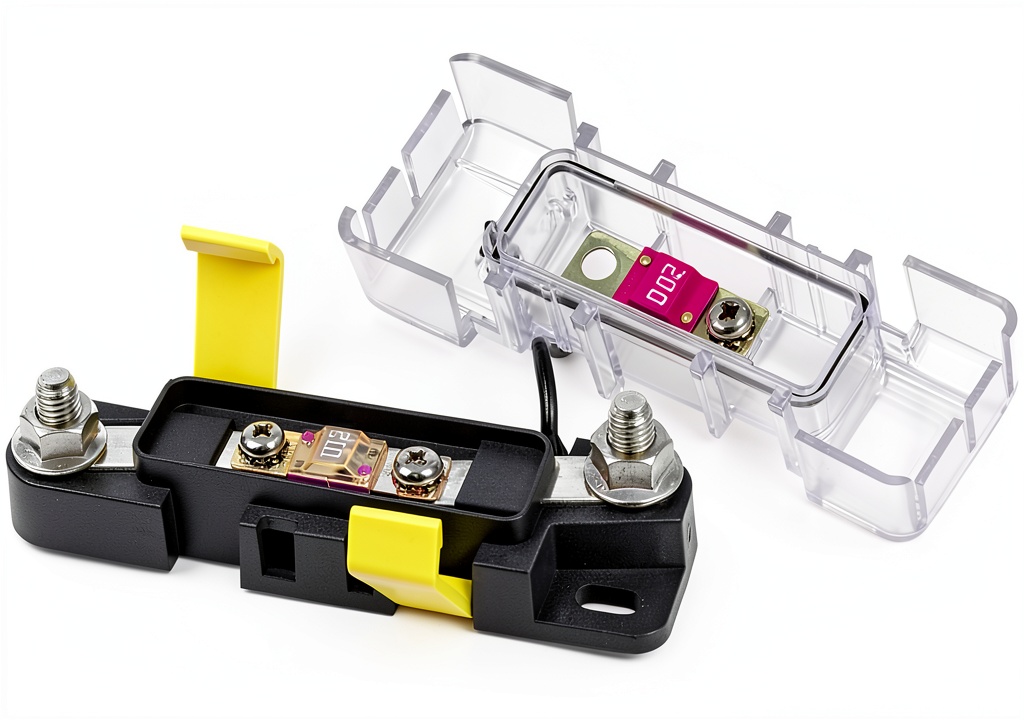

The Blue Sea Systems Fuse Block MIDI is engineered specifically for the demanding environment of marine electrical systems. Constructed from high‑impact marine‑grade plastic, the block provides a durable, corrosion‑resistant housing that safeguards the internal fuses against salt spray, UV exposure, and the constant vibration typical on both gasoline and diesel powered vessels. The sealed cover not only keeps moisture out but also prevents accidental contact with live terminals, enhancing overall safety for crew members and passengers. With dimensions of approximately 8 x 4 x 2 inches and a weight of just 5.3 ounces, the unit is compact enough to fit into tight engine compartments, control panels, and distribution boxes without sacrificing accessibility.
Beyond its robust physical construction, the Fuse Block MIDI incorporates an ignition‑protected design that complies with ABYC (American Boat and Yacht Council) and USCG (United States Coast Guard) insulation standards. This means that the block will not allow a fuse to be installed in a manner that could cause a short circuit during engine start‑up, a critical safety feature for any boat that relies on gasoline or diesel fuel. The block is rated for a range of fuse sizes, allowing users to tailor protection levels to specific circuits, from lighting and navigation equipment to pumps and auxiliary systems. The clear labeling on each fuse slot simplifies identification and replacement, reducing downtime during maintenance or emergency repairs.
Blue Sea Systems, a trusted name in marine electrical components, backs the Fuse Block MIDI with a limited warranty that underscores the company’s confidence in product durability and performance. The part number 7720 ensures easy ordering and compatibility checks across a wide range of marine applications. Whether you are outfitting a new vessel, upgrading an existing system, or performing a routine overhaul, this fuse block provides a reliable, user‑friendly solution that meets industry standards while delivering long‑term protection for your electrical network.
Usage
Designed for installation aboard both gasoline and diesel powered boats, the Fuse Block MIDI excels in environments where reliability and safety are non‑negotiable. It is ideally suited for protecting critical circuits such as engine cooling pumps, bilge alarms, navigation lights, and communication equipment. The sealed plastic enclosure ensures that even in heavy seas or during prolonged exposure to salty air, the fuses remain dry and functional, preventing premature failure that could leave essential systems offline. Marine electricians appreciate the block’s straightforward wiring layout, which allows for quick integration into existing panels without the need for extensive rewiring or custom brackets.
Beyond traditional power distribution, the block can be employed in custom installations for recreational vessels, commercial fishing boats, and even small offshore platforms where space constraints demand a compact yet robust solution. Its lightweight nature reduces overall vessel weight, contributing to better fuel efficiency and handling characteristics. The block’s color – a distinctive blue/sea hue – not only aligns with the brand’s visual identity but also provides high visibility in cluttered engine rooms, making it easier for technicians to locate during routine inspections or emergency troubleshooting.
For DIY boat owners, the Fuse Block MIDI offers a user‑friendly experience. The included instructions guide users through the process of mounting the block, connecting the appropriate fuse sizes, and verifying proper operation. Because the block meets ABYC/USCG insulation requirements, installers can be confident that the system will pass marine safety inspections, a crucial consideration for vessels that operate in regulated waters or require certification for charter use. The block’s versatility also extends to shore‑based applications such as workshop power distribution, where its marine‑grade protection can safeguard tools and equipment from power surges and short circuits.
Why Choose Us
When selecting a fuse block for marine applications, the combination of material quality, safety certifications, and brand reputation becomes paramount. Blue Sea Systems delivers on all three fronts. The use of marine‑grade plastic ensures that the block will not degrade over time, even when exposed to the harshest saltwater conditions. This longevity translates into lower replacement costs and reduced maintenance intervals, offering long‑term value for boat owners and operators.
Safety is embedded in the design of the Fuse Block MIDI. The ignition‑protected feature prevents the insertion of a fuse that could cause a short circuit during engine start‑up, a scenario that has historically led to fires and equipment damage on many vessels. By meeting ABYC and USCG insulation standards, the block provides peace of mind that the electrical system complies with the most stringent marine safety regulations, a critical factor for vessels that undergo regular inspections or operate in commercial capacities.
Blue Sea Systems’ reputation for quality is reinforced by a robust customer support network and a limited warranty that covers manufacturing defects. The company’s extensive experience in marine electrical solutions means that each product is the result of rigorous testing, field feedback, and continuous improvement. Customers benefit from readily available technical documentation, responsive service teams, and a community of marine professionals who share best practices and installation tips.
In addition to the core product benefits, the Fuse Block MIDI’s design emphasizes ease of installation and future scalability. The block’s modular layout allows for the addition of extra fuse slots or the replacement of existing fuses without the need for specialized tools. This flexibility is especially valuable for boat owners who may upgrade their electrical systems over time, adding new equipment such as high‑power LED lighting, advanced navigation suites, or electric propulsion components.
Finally, the aesthetic appeal of the blue/sea color scheme not only reinforces brand identity but also provides a visual cue that distinguishes the block from generic components. This visual differentiation can aid in quick identification during emergency situations, ensuring that crew members can locate and replace a blown fuse rapidly, minimizing downtime and maintaining critical system functionality.
Key Features
- Marine‑grade plastic housing resists corrosion, UV exposure, and vibration for long‑lasting durability
- Ignition‑protected design meets ABYC and USCG insulation standards, preventing start‑up shorts
- Sealed cover keeps moisture out, safeguarding fuses in harsh saltwater environments
- Compact size and lightweight construction fit easily into tight engine compartments and panels
- Backed by Blue Sea Systems limited warranty and responsive customer support for peace of mind
FAQ
What size fuses can be used with the Fuse Block MIDI?
The block is compatible with standard marine fuses ranging from 5 amp to 30 amp, allowing you to protect a variety of circuits. Always select a fuse rating that matches the wire gauge and load requirements of the specific circuit you are protecting.
Is the Fuse Block MIDI suitable for both gasoline and diesel engines?
Yes. The ignition‑protected feature is designed to work with both gasoline and diesel powered vessels, ensuring safe operation during engine start‑up regardless of fuel type.
How does the sealed cover protect the fuses?
The sealed cover creates a watertight barrier that prevents salt spray, rain, and splashing water from reaching the fuse terminals. This reduces the risk of corrosion and short circuits, extending the life of both the fuses and the block itself.
Can the Fuse Block MIDI be installed in existing panels?
Absolutely. Its compact dimensions and straightforward wiring layout make it easy to retrofit into existing distribution panels or to incorporate into new builds without extensive modifications.
What warranty does Blue Sea Systems provide for this product?
The Fuse Block MIDI comes with a limited warranty that covers manufacturing defects. For detailed warranty terms, refer to the product documentation or contact Blue Sea Systems customer service.
