uxcell 5 Pcs 5x20mm Inline Screw Fuse Holder with 10A Glass Fuses

Description

Product Overview

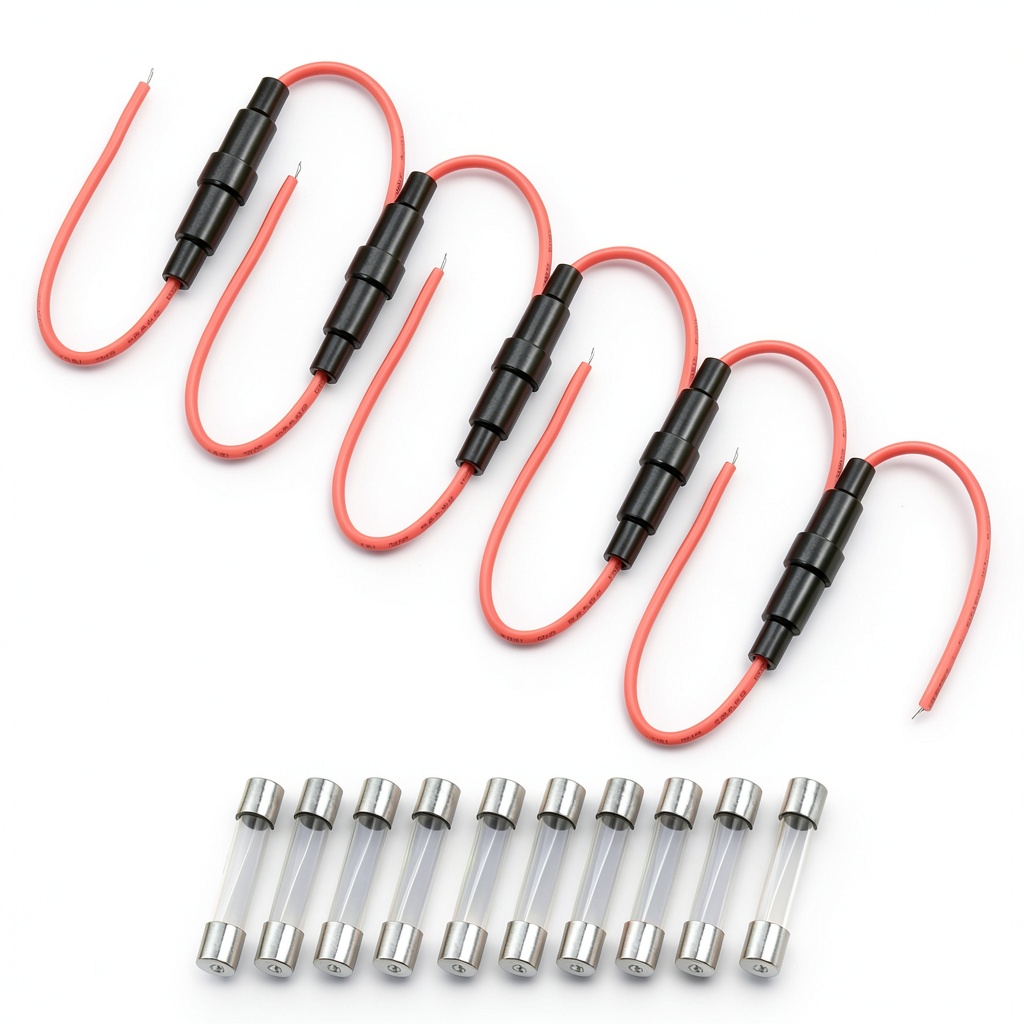

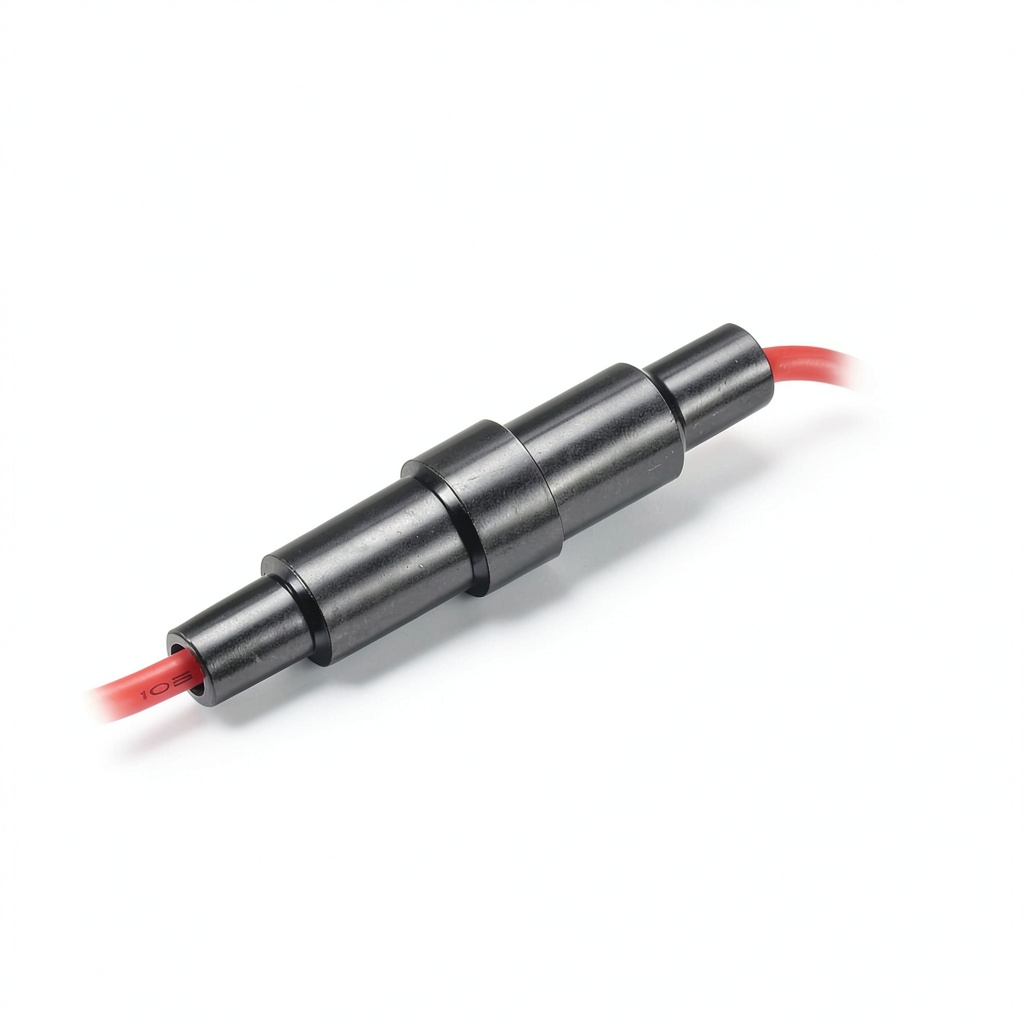

The uxcell 5‑piece inline screw fuse holder is engineered to provide a reliable, easy‑to‑install solution for protecting electrical circuits that use standard 5x20mm glass fuses. Constructed from a high‑temperature‑resistant polymer blend, the housing offers excellent insulation and durability, ensuring long‑term performance even in demanding environments. Each holder includes a set of ten 10 A fast‑blow glass fuses, pre‑packaged with a 22 AWG red wire that matches the holder’s internal contacts for optimal conductivity. The screw‑type terminals enable secure, tool‑free connections, allowing users to quickly replace fuses without disassembling the entire circuit. This design reduces downtime and simplifies maintenance for both hobbyists and professional electricians.

Dimensions of the holder are compact, measuring approximately 85mm in length, 46mm in width, and 10mm in height, which fits neatly into standard junction boxes and control panels. The product weight is only 1.44 ounces, making it lightweight yet robust. The included red wire is precisely 85mm long, providing enough slack for routing while maintaining a tidy appearance. The fuse holder’s color‑coded design—red for the wire and a clear housing for visual inspection—helps users quickly identify the correct component during installation or troubleshooting.

Usage

This fuse holder is ideal for a wide range of applications, from residential lighting circuits and appliance repair to industrial control panels and automotive electrical systems. Its versatility stems from the ability to accommodate various wire gauges, including 22 AWG, 20 AWG, 18 AWG, and 16 AWG, making it suitable for both low‑current and moderate‑current projects. The fast‑blow characteristic of the included 10 A fuses ensures rapid response to short‑circuit conditions, protecting downstream components from damage. Whether you are wiring a home automation hub, setting up a DIY robotics project, or maintaining a commercial HVAC system, this fuse holder delivers consistent performance.

Installation is straightforward: strip the wire ends to expose approximately 2.5mm of conductor, insert each end into the corresponding screw terminal, and tighten the screws until a firm connection is achieved. The transparent housing allows you to visually confirm the fuse’s integrity without removing the holder, facilitating quick diagnostics. For environments with limited space, the holder’s low profile enables mounting on DIN rails or directly onto printed circuit boards using the provided mounting brackets.

When used in outdoor or harsh environments, it is recommended to pair the holder with a protective enclosure rated for the specific conditions, as the holder itself is not moisture‑sealed. However, its heat‑resistant polymer can tolerate temperatures up to 150 °C, making it suitable for most indoor applications where temperature fluctuations are moderate.

Why Choose Us

Choosing the uxcell fuse holder means selecting a product backed by rigorous quality control and a commitment to customer satisfaction. Each unit undergoes a multi‑stage testing process, including electrical continuity verification, thermal endurance assessment, and mechanical stress testing, to guarantee that it meets or exceeds industry standards such as IEC 60947‑1. Our manufacturing facilities employ precision injection molding techniques that ensure uniform wall thickness and consistent material properties across every batch.

In addition to product reliability, uxcell provides responsive after‑sales support. Our technical team is available to assist with installation queries, troubleshooting, and warranty claims. We stand behind our products with a one‑year limited warranty, reflecting confidence in the durability and performance of our fuse holders.

Environmental responsibility is also a core value. The polymer used in the housing is free from halogenated flame retardants, and the packaging is designed to minimize waste, aligning with sustainable manufacturing practices.

Key Features

• Compact, heat‑resistant housing for space‑constrained installations
• Screw‑terminal design enables fast, tool‑free wiring and fuse replacement
• Includes ten 10 A fast‑blow glass fuses and matching 22 AWG red wire for complete kits
• Supports multiple wire gauges (16‑22 AWG) for versatile application across circuits
• Backed by uxcell’s dedicated customer support and one‑year warranty

FAQ

What fuse sizes are compatible with this holder?

The holder is designed for standard 5x20mm glass tube fuses, which are widely used in residential and industrial applications. It can accommodate fuses ranging from 1 A to 15 A, though the included fast‑blow fuses are rated at 10 A.

Can I use this holder with a different wire gauge?

Yes. The holder accepts wire gauges from 16 AWG up to 22 AWG. For optimal contact, ensure the wire is stripped to the recommended length and securely tightened in the screw terminals.

Is the holder suitable for outdoor use?

The holder itself is not moisture‑sealed, so for outdoor or damp environments it should be installed inside a weather‑proof enclosure. Its polymer housing can withstand temperatures up to 150 °C, making it suitable for most indoor temperature ranges.

How do I replace a blown fuse?

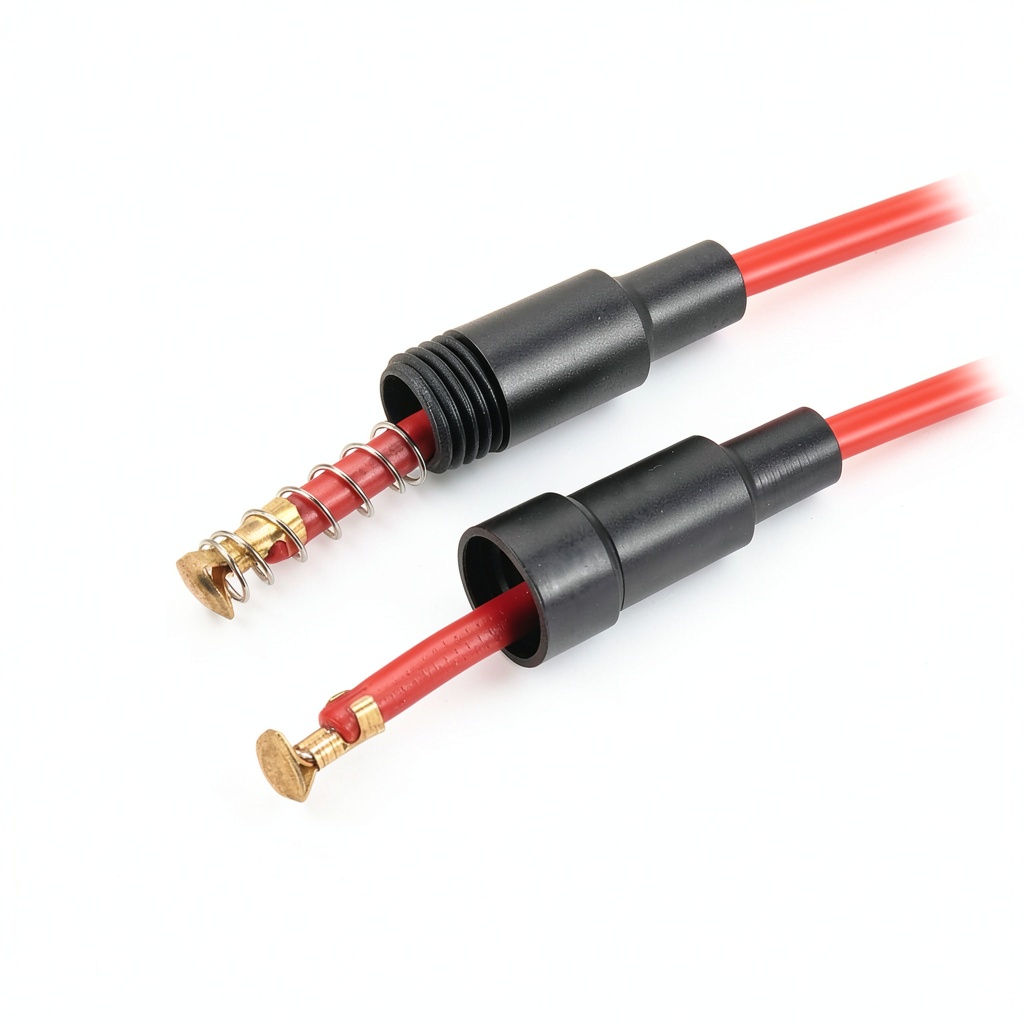

First, disconnect power to the circuit. Unscrew the housing cover, remove the blown fuse, insert a new 5x20mm glass fuse of the same rating, and re‑tighten the cover. The transparent housing allows you to verify the fuse’s condition without disassembly.

What warranty does uxcell provide?

All uxcell fuse holders come with a one‑year limited warranty covering manufacturing defects. If you encounter any issues, contact our support team with your purchase details for assistance.
